Most simple setup:
One generic dimmer.
Set the intensity to eg. 150
Dump to a scene.
Reset dump channels
Run the scene in preview.
All ok. output =150
Now I want to change the intensity to 100 by using the dimmer in the scene (lower part of the screen).
I can move the fader and the dmx value of the fader changes, but the DMX output not.
What do I do wrong?
Thanks!
simple question (hopefully) about editing scene
-
GGGss
- Posts: 3052
- Joined: Mon Sep 12, 2016 7:15 pm
- Location: Belgium
- Real Name: Fredje Gallon
HTP logic, (Highest Takes Precedence)
150 is higher than 100, so 150 wins.
If you change your dimmer channel to LTP - it will work. Use the channel modifier: https://docs.qlcplus.org/v4/fixture-man ... properties
150 is higher than 100, so 150 wins.
If you change your dimmer channel to LTP - it will work. Use the channel modifier: https://docs.qlcplus.org/v4/fixture-man ... properties
All electric machines work on smoke... when the smoke escapes... they don't work anymore
-
SPS
- Posts: 70
- Joined: Fri Apr 05, 2019 9:51 am
- Real Name: Paul Misset
Sure, but in version 4 I can change the value to what I want editing a scene in preview?
Also using HTP for dimmer (and most of rgb channels ) is common practice.
Is this a (unwanted) effect of not having a separate edit and live setting?
Also using HTP for dimmer (and most of rgb channels ) is common practice.
Is this a (unwanted) effect of not having a separate edit and live setting?
-
giacomo
- Posts: 553
- Joined: Tue May 26, 2015 6:17 pm
- Real Name:
Hi Paul,
probably it's a drawback: the scenes do not auto-update while playing in VC,
so if you change the dimmer intensity in 2D, you've to reload the scene in VC to see the effect.
(as alternative, you can control it with the Simple Desk and in 2D dump it over the original cue)
Maybe you can ask it as a feature request?
probably it's a drawback: the scenes do not auto-update while playing in VC,
so if you change the dimmer intensity in 2D, you've to reload the scene in VC to see the effect.
(as alternative, you can control it with the Simple Desk and in 2D dump it over the original cue)
Maybe you can ask it as a feature request?
-
giacomo
- Posts: 553
- Joined: Tue May 26, 2015 6:17 pm
- Real Name:

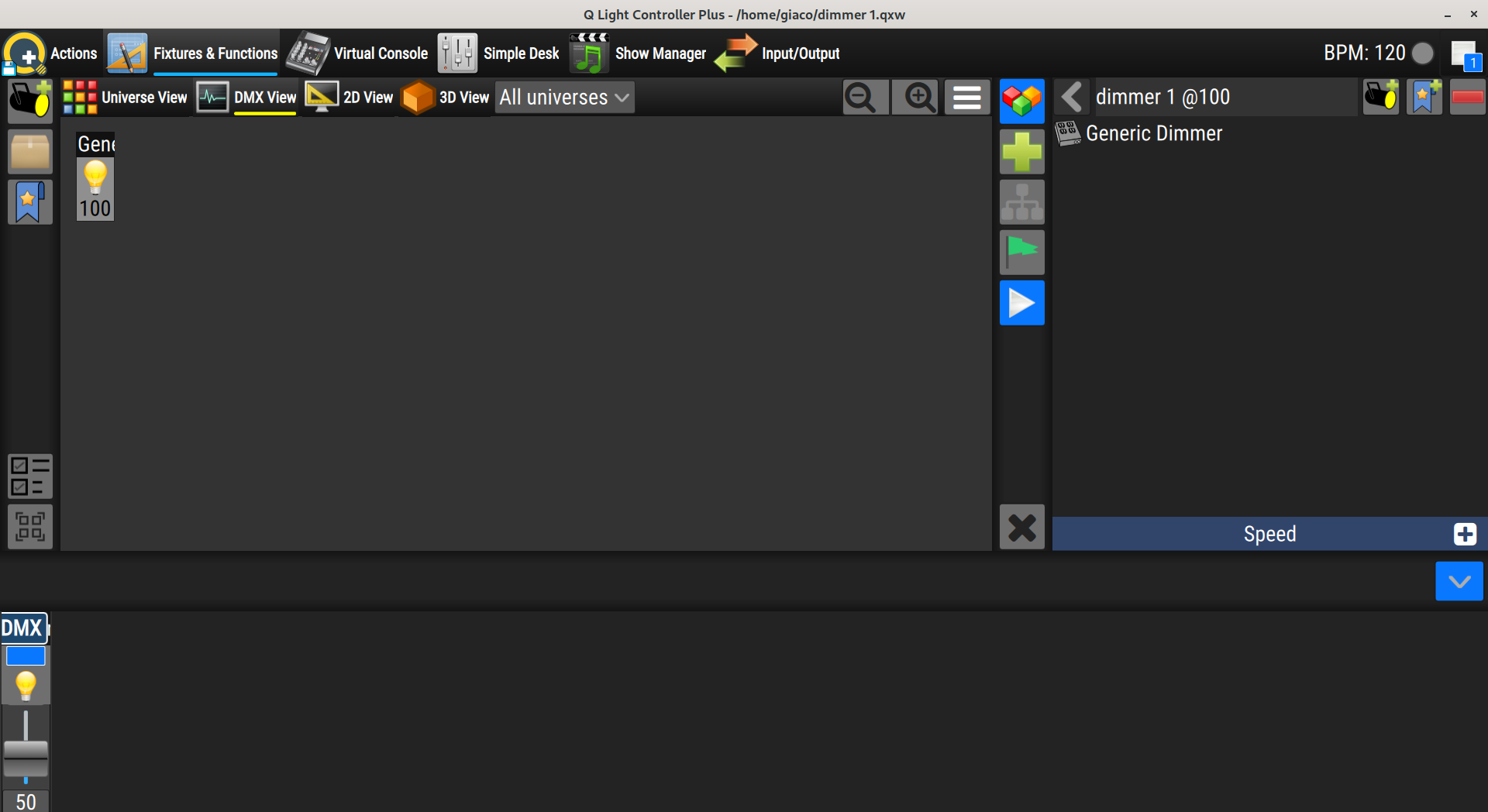

Sorry I didn't notice the "preview scene".
It's a bug and it happens only if you select the dimmer before previewing the scene,
the intensity can only be rised:
and when you stop the preview the function is still played: (EDIT: the real bug)
Would you mind to report it?
Step to reproduce:
1. open the file
2.select the dimmer
3.preview the scene
4.try to modify the intensity inside the scene >> can only rise (there is a similar problem with the Intensity widget)
5.stop the preview >> continues to play (the real issue)
EDIT: no the behavior it's not a bug because I selected the fixture before the preview,
the widgets now update to the output and so you can only rise htp channels >> widget and scene slider are updating each other in a loop.
The real and serious issue it's that qlcplus shows a running function when you stop the preview and you cannot reset anymore the fixture,
you have to stop all the running functions to kill it and it will be a problem if you're running other scenes in VC.
EDIT2: hopefully a temporary workaround, it seems that you need to exit the edit mode and only then stop the scene, or try to play and stop again the scene without a selection.
It's a bug and it happens only if you select the dimmer before previewing the scene,
the intensity can only be rised:
dimmer 1.qxw- (2.75 KiB) Downloaded 95 times
1. open the file
2.select the dimmer
3.preview the scene
4.try to modify the intensity inside the scene >> can only rise (there is a similar problem with the Intensity widget)
5.stop the preview >> continues to play (the real issue)
EDIT: no the behavior it's not a bug because I selected the fixture before the preview,
the widgets now update to the output and so you can only rise htp channels >> widget and scene slider are updating each other in a loop.
The real and serious issue it's that qlcplus shows a running function when you stop the preview and you cannot reset anymore the fixture,
you have to stop all the running functions to kill it and it will be a problem if you're running other scenes in VC.
EDIT2: hopefully a temporary workaround, it seems that you need to exit the edit mode and only then stop the scene, or try to play and stop again the scene without a selection.
